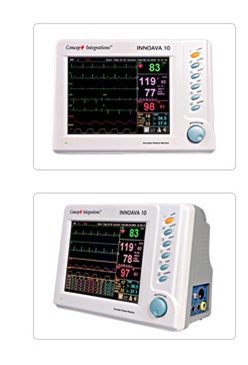

INNOVA 10

• 10.4” Color TFT display with 6 waveforms
• Standard configurations ECG, SPO2, NIBP, RESP, TEMP
• Upgradeable to 2-IBP, EtCO2
• Arrhythmia analysis, S-T segment detection
• Maximum 72 hours graphical and tabular trendsof all parameters
• Suitable for adult, pediatric and neonatal patient
• Facility to connect External / Slave Monitor
• Built in rechargeable battery
• Supports Central Monitoring System connectivity

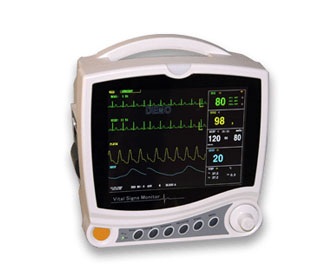

CB - 8 - 6 Para Monitors

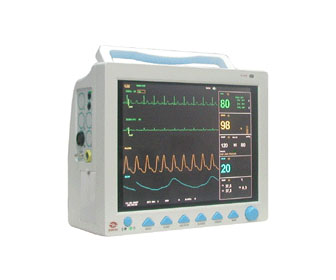

CB - 12 - 6 Para Monitors

• Lead mode:3-lead or 5-lead
• Lead selection:I;II;III; avR;avL;avF;V
• Heart rate range : Adult:15-300bpm; Pediatric/Neonatal:15-300bpm
• ECG waveform: 2 channals
• Accuracy: ± 1 bpm or ±1%
• S-T segment detection Measurement rang :-0.2mv~2.0mv
• Alarm:Yes,audible and visual alarm,alarm events review
• High resolution 12.1"color TFT display
• Light weight, compact and portable
• ECG,APO2,NIBP,RESP,2-TEMP,PR
• Optional:2-IBP,ETCO2,And thermal printer
• Bulit-in rechargeable lithium battery
• ECG waveforms of 7-leads display on the same screen
• 72-hours graphic and tabular trends of all parameters
• 72 alarm events of all parameters recall
• 32 seconds full-disclosure waveform review
• 500 NIBP measurement date can be storage and recall
• Date and waveforms color be adjustable
• Arrhythmia analysis and S-T segment analysis
• Suitable for adult,pediatric and neonatal patient

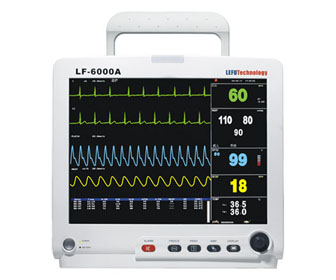

CB - 15 - 6 Para Monitors

• Parameter: ECG, HR, NIBP, RESP, SpO2, Dual-TEMP
• 15"color TFT display, 1024X768 resolution
• Rolling and refreshing waveform display (every channel)
• 7 ECG channels display simultaneously
• 13 kinds of arrhythmia & 3 channels S-T segment detection auto-analysis
• 96 hours graphic and tabular trends of all parameters
• 50 VPC events; 300 groups NIBP data; 20 minutes ECG waveform recall
• Anti electrosurgical interference and defibrillation
• Big-font display
• Monitor-network with central monitor

CB - 300 - 3 Channel ECG Machine

• High resolution thermal printing system ,high precision
• 12 leads collection in phase as well as 3 leads printing in phase
• Digital design and filter, baseline auto-adjustable
• LCD displays operation menu .DC/AC auto-exchange
• Automatic measurement, analysis and diagnosis with high speed
• Elegant and compact outlook, with inner handhold

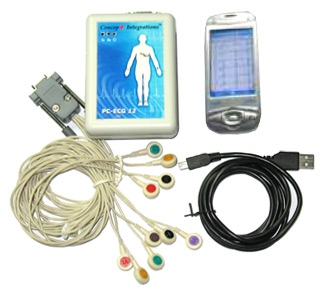

PCECG System - EDS

F E A T U R E S :

• Small & Compact ECG acquisition Unit.
• Powerful Measurements & Analysis Function.
• User friendly Graphical User Interface (GUI).
• Stress Test Compatibility.
• Telemedicine Connectivity.
• ECG Channels Simultaneous 12 Channel ECG.
• 10 Lead Patient Cable.
• USB Compatibility USB 1.1, USB 2.0.
• Power Supply USB Supply.
• Dimension 75 x 105 x 35 mm.
• Weight 144 g.
• Telemedicine Store & Forward Technique for Sending Patient’s Data
• Across Internet to Specialist.

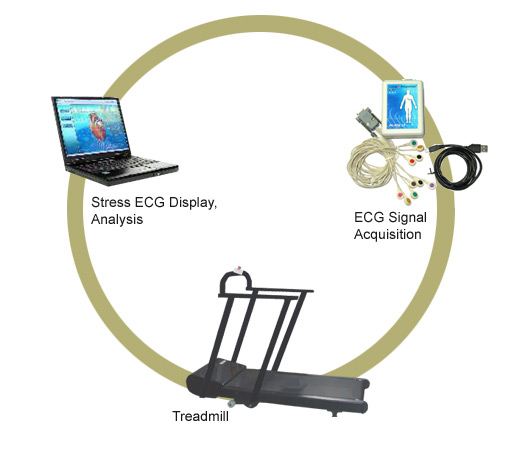

Stress Test System

F E A T U R E S:

• Advanced Exercise Testing System.
• Cardio - ST Exercise Testing System Offers simplicity, accuracy, versatility and reliability to suit your needs for performing stress test.
• Cardio - ST is the combination of accurate, reliable, and field proven electro – cardiograph module developed by Concept Integrations and very low noise performance heavy duty treadmill.
• Automatic Report Generation.
• Display color coded comparison with reference lead with ST Level & ST Slope Value.
• Complete test along with patient details can be stored.
• Provided a facility to store only results of the complete test.
• Stored test can be recalled and reviewed.
• Fine control of speed of Treadmill by using AC drive. Low noise, jerk free change in elevation & speed, RS 232 Communication, Sleek new body style, Built for comfort, Heavy duty steel section, Cushioned deck, Thick walking belt.

HOLTER (AMBULATORY ECG RECORDER/ANALYZER)

DL - 820 - 3 channel

Holter Recorder Feature



• Include DMS/PIV/PV/ century3000
• PCMCIA flash card
• Through LED direct to begin and write down information
• Escape circuit of libration
• Recorder-box cubage:13cm×6.2cm×1.8cm
• Use 2 AA of alkalescent batteries
• Safeguard circuit to be fit
• Event key
• 7 color electrical wire

Holter Recorder Function

• ECG channels: 3 channels
• resolving power: 8 bit
• Frequency: 128/sec
• Manner: full-information without compressing
• Time: 24 hours
• Medium of Store :40M

DL-820™ Accessories

• 2G flash card
• Recorder pouch
• Shoulder belt
• Waist belt
• 7 lead wire

DL - 820 -Pro 12 Channel

Features

• Recording Channel：I、II、III、AVR、AVL、AVF、V1、V2、V3、V4、V5、V6
• LCD Display：12-Lead or 1、3、6 Channels
• Impedance measurement
• Measure grid display on or off
• Gain：1/2、1、2 mV
• Speed：12.5、25、50 mm/s
• Buttons：Freeze button、LCD display button、Event button
• LCD resolution：320X240 dots




DL-820™pro Accessories

• Recorder pouch
• clip
• Waist belt
• Arm belt
• Shoulder belt
• 2G flash card
• 10 lead wire




Specifications

• A/D：16 bit
• Recording：Beat to Beat
• Sampling：128, 256 Hz（Conventional） 10,000Hz （Pacemaker）
• Duration：24-72 hours
• Storage：Scandisk Compact Flash Card
• Memory Size：128M or higher
• PC Interface：USB
• LCD Display：83mmX65mm
• Channels：I、II、III、AVR、AVL、AVF、V1、V2、V3、V4、V5、V6
• Dimensions：106mmX78mmX20mm
• Power Supply：2 AAA of alkaline batteries
• Humidity：10%-90%
• Electrode：10 lead（ECG Standard）
• Colour：Black, Silver
• Language：Chinese, English

Ambulatory BP Machine

S P E C I F I C A T I O N S



Duration of blood pressure monitoring : 24 hours
Method of measurement : scillometric method Korotkoff-sound method (option)
Storage medium :Flash memory
Memory Capacity :256 measurements
Indicating Range :0 ~ 300 mmHg
Range of blood pressure : Systolic 50 ~ 260 mmHg Diastolic 30 ~ 180 mmHg
Accuracy : ± 3 mmHg
Range of Pulse : 30 ~ 250 bpm
Communication Port : Standard RS - 232C series port Wireless infrared data transfer (option) Batteries : 4 X AA size alkaline batteries
Dimensions : 130 X 72 X 30 (mm)
Weight :210 g (excluding batteries)
Safety Type :B Type
PC minimum requirement : Pentium III 500 MHz or higher 1024 X 768 resolution
System requirements :Windows 9x / 2000 / XP

HELIOS 401

PC based Spirometer

• USB powered ergonomic handset
• Detachable and easy to disinfect digital turbine transducer
• Best maneuver selection (Auto/Manual)
• FVC,SVC and MVV test
• Indian predicated equations
• Ethnic corrections
• Pediatric Incentives
• Lungs age calculation
• Flow-Volume/Volume-Time graphs
• Pre-Post bronchodialation test
• Trends
• Doctor's Notes
• Auto-Interpretation
• Customized printing options (single and all curves)
